60 HZ

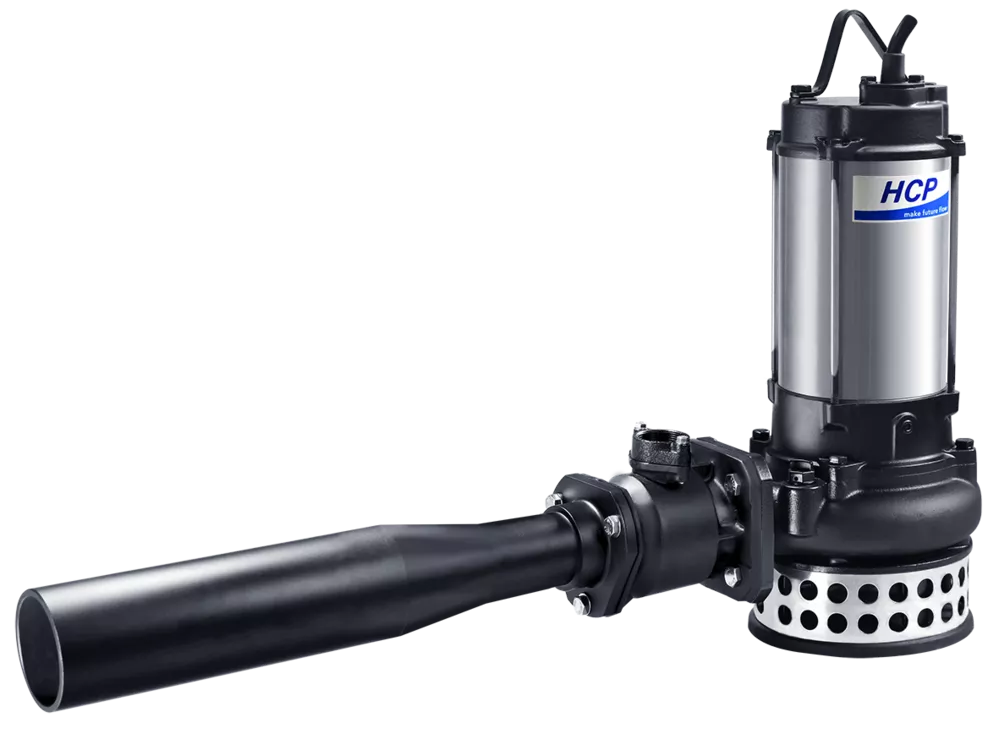

J Series
Submersible Ejector Pump

-
Features
Special Mix Chamber design – Provides maximum air suction and produces the maximum amount of small air bubbles, which increases the rate of oxygen supply.
-
Applications
Wastewater treatment, aquaculture farming, landscape and water circulation.
- Performance Curves
- Sectional Drawing
- Technical Information
Model | Power HP(kW) | Suction Pipe inch(mm) | Air Volume (Depth) m3/h-m | MAX m-m³/min | Capacity m3/h | Solid Passage mm(inch) | Weight (W/OCable) 1Ø-kg(lbs) | Weight (W/OCable) 3Ø-kg(lbs) |
---|---|---|---|---|---|---|---|---|
25JFP2.8 | 1(0.75) | 1"(25) | 13-2.5 | 2.5 | 19 | 20(3/4") | 19(42) | 18(40) |
32JNP21.5 | 2(1.5) | 1.25(32) | 26-3 | 4 | 45 | 20(3/4") | 34(75) | 30(66) |
32JNP22.2 | 3(2.2) | 1.25(32) | 35-3 | 4.5 | 54 | 20(3/4") | 37(82) | 32(71) |
50JNP23.7 | 5(3.7) | 2"(50) | 65-3 | 5 | 73 | 20(3/4") | – | 35(77) |
32JPP21.5 | 2(1.5) | 1.25"(32) | 26-3 | 4 | 45 | 20(3/4") | 37(82) | 32(71) |
32JPP22.2 | 3(2.2) | 1.25"(32) | 35-3 | 4.5 | 54 | 20(3/4") | 39(86) | 35(77) |
50JPP43.7 | 5(3.7) | 2"(50) | 85-3 | 5.5 | 87 | 35(1-3/8") | – | 70(154) |
50JPE45.5 | 7.5(5.5) | 2"(50) | 125-3 | 6 | 138 | 35(1-3/8") | – | 106(317) |
50JPU41.5 | 2(1.5) | 2"(50) | 18-3 | 3.5 | 39 | 43(1-3/4") | 46(101) | 46(101) |
50JPU42.2 | 3(2.2) | 2"(50) | 35-3 | 4 | 57 | 43(1-3/4") | - | 54(119) |
50JPU43.7 | 5(3.7) | 2"(50) | 60-3 | 5 | 81 | 43(1-3/4") | - | 61(134) |
50JPU45.5 | 7.5(5.5) | 2"(50) | 100-3 | 6 | 108 | 43(1-3/4") | - | 95(209) |
50JPU47.5 | 10(7.5) | 2"(50) | 135-3 | 6 | 132 | 43(1-3/4") | - | 104(229) |
